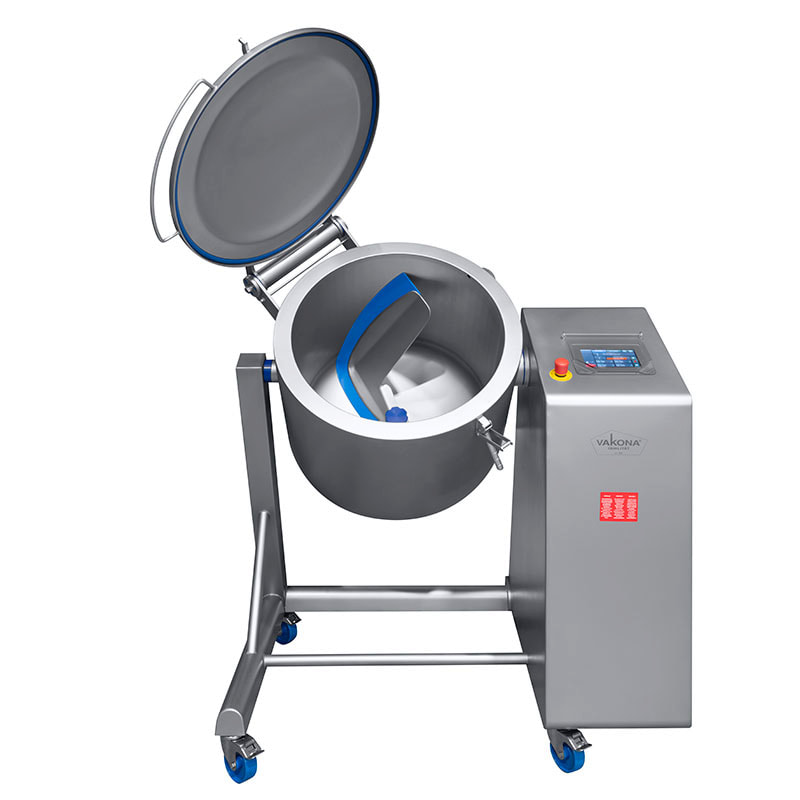

Energy saving cooling tumbler ESK® 100–250 STL​

VAKONA Energy Saving Cooling Tumblers are designed for the operation in the food industry, especially for the field of meat, poultry and fish processing. They are suited for the massing, mixing, massaging, marinating and tumbling of all kind of meat-, poultry and fish products.
The machines captivate with a high user friendliness which is achieved by a plain handling and easy cleaning. A high individualization of the machines is reached by a wide range of equipment options, in order to achieve the highest possible degree of customer-specific product optimization.

Standard equipment:
​

• Bowl, machine cabinet and frame made from stainless steel
• ​Movable with 4 breakable wheels
• Touch screen control unit for automatic and manual operation

• Memory for up to 99 recipes with free adjustable parameters: total-, working- and pause time, rotation speed, temperature, vacuum level, aeration intervals, bowl angle position and automatic bowl sway mode.
• Rotation speed of the tumbling arm variable adjustable from 3-25 rpm
• ​Direct cooling system with powerful cooling aggregate and heat exchanger in double jacket bowl, made from stainless steel

• Vacuum system including high performance vacuum pump, automatic and programmable aeration cycles, aseptic filter for sterilization of aeration air, hygienic automatic water separator

• Electrical, infinitely variable tilting of the bowl for emptying of the machine

• Opening and closing of the lid with operator assistance

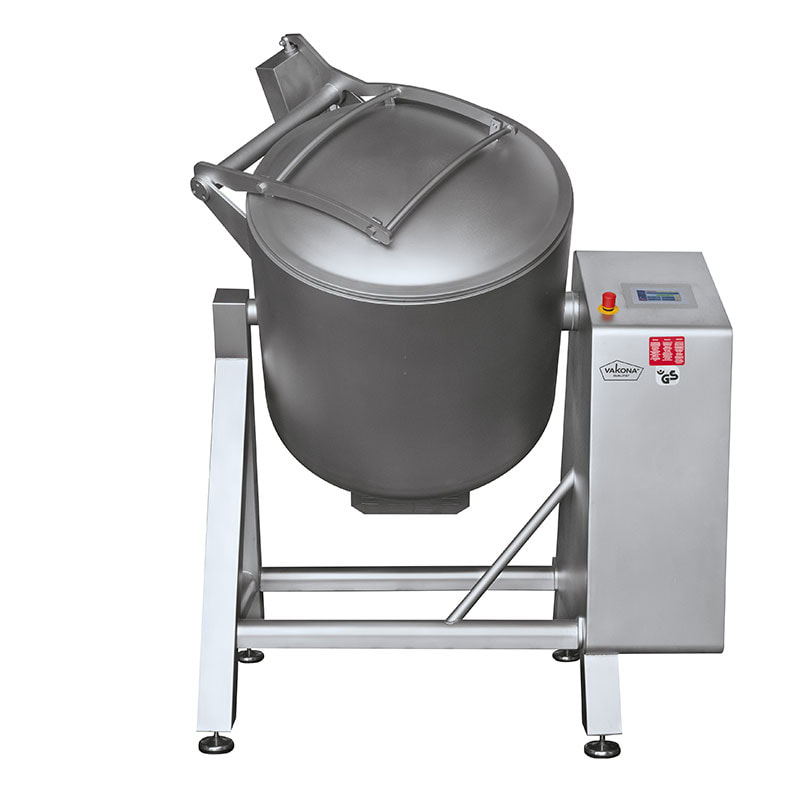

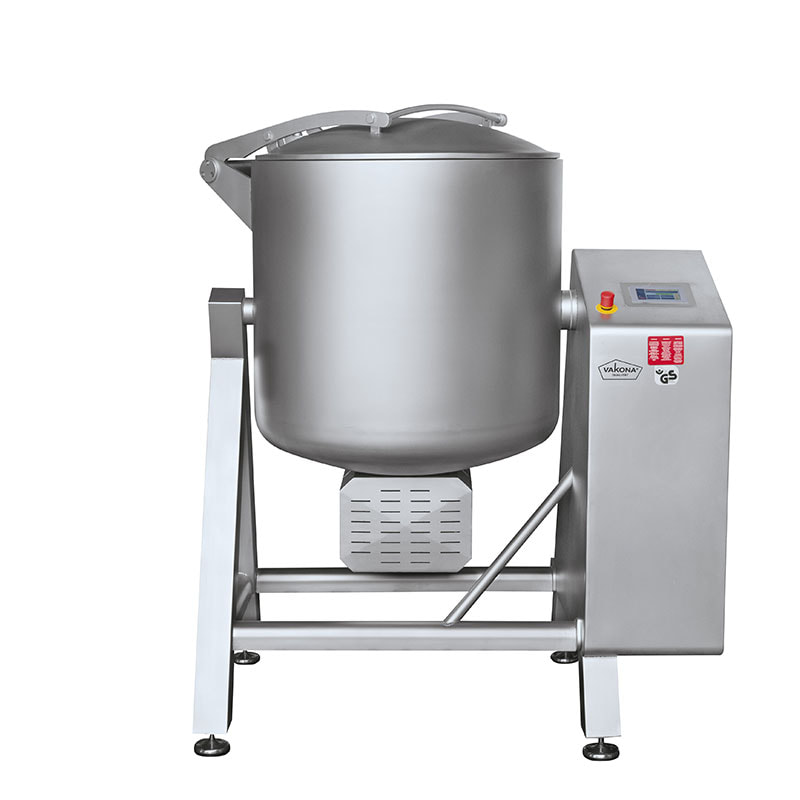

Energy saving cooling tumbler ESK® 300–400 STL

​VAKONA Energy Saving Cooling Tumblers are designed for the operation in the food industry, especially for the field of meat, poultry and fish processing. They are suited for the massing, mixing, massaging, marinating and tumbling of all kind of meat-, poultry and fish products.
The machines captivate with a high user friendliness which is achieved by a plain handling and easy cleaning. A high individualization of the machines is reached by a wide range of equipment options, in order to achieve the highest possible degree of customer-specific product optimization.

Standard equipment:
​

• Bowl, machine cabinet and frame made from stainless steel
  machine stationary
• Touch screen control unit for automatic and manual operation
• Memory for up to 99 recipes with free adjustable parameters: total-, working- and pause time, rotation speed, temperature, vacuum level, aeration intervals, bowl angle position and automatic bowl sway mode.
• Rotation speed of the tumbling arm variable adjustable from 3-18 rpm
• Direct cooling system with powerful cooling aggregate and heat exchanger in double jacket bowl, made from stainless steel
• Vacuum system including high performance vacuum pump, automatic and programmable aeration cycles, aseptic filter for sterilization of aeration air, hygienic automatic water separator
• Electrical, infinitely variable tilting of the bowl for emptying of the machine
• Electrical lid operation

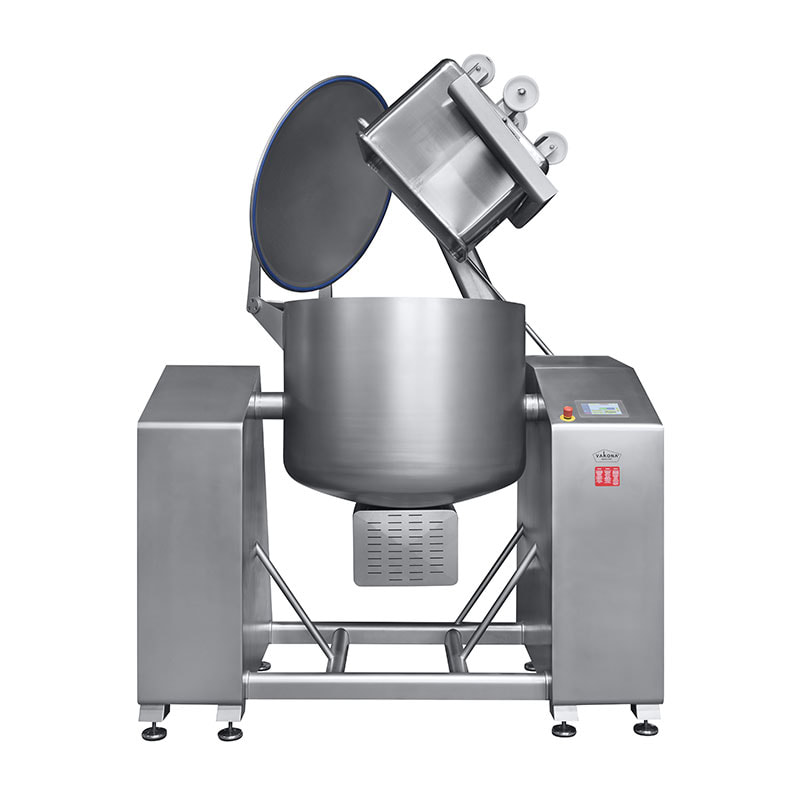

Energy saving cooling tumbler ESK® 550–850 STL

VAKONA Energy Saving Cooling Tumblers are designed for the operation in the food industry, especially for the field of meat, poultry and fish processing. They are suited for the massing, mixing, massaging, marinating and tumbling of all kind of meat-, poultry and fish products.
The machines captivate with a high user friendliness which is achieved by a plain handling and easy cleaning. A high individualization of the machines is reached by a wide range of equipment options, in order to achieve the highest possible degree of customer-specific product optimization.

Standard equipment:

• Bowl, machine cabinet and frame made from stainless steel
  machine stationary
• Touch screen control unit for automatic and manual operation
• Memory for up to 99 recipes with free adjustable parameters: total-, working- and pause time, rotation speed, temperature, vacuum level, aeration intervals, bowl angle position and automatic bowl sway mode.
• Rotation speed of the tumbling arm variable adjustable from 3-18 rpm
• Direct cooling system with powerful cooling aggregate and heat exchanger in double jacket bowl, made from stainless steel
• Vacuum system including high performance vacuum pump, automatic and programmable aeration cycles, aseptic filter for sterilization of aeration air, hygienic automatic water separator
• Electrical, infinitely variable tilting of the bowl for emptying of the machine
• Electrical lid operation

Accessories:

• Stainless steel tumbling arm, including scraper with press-button-system
• Tool for scraper fixing

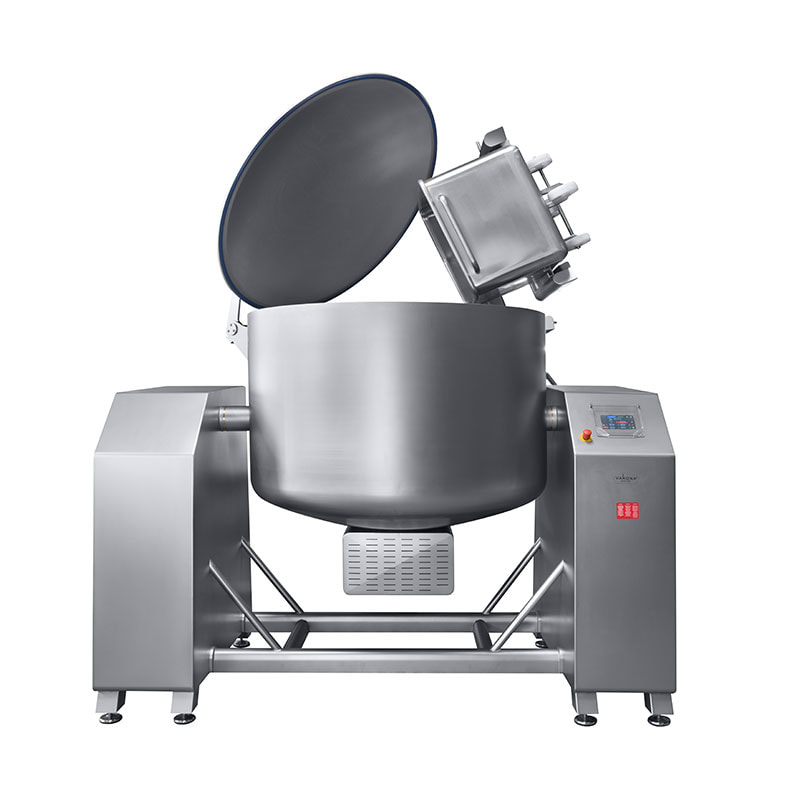

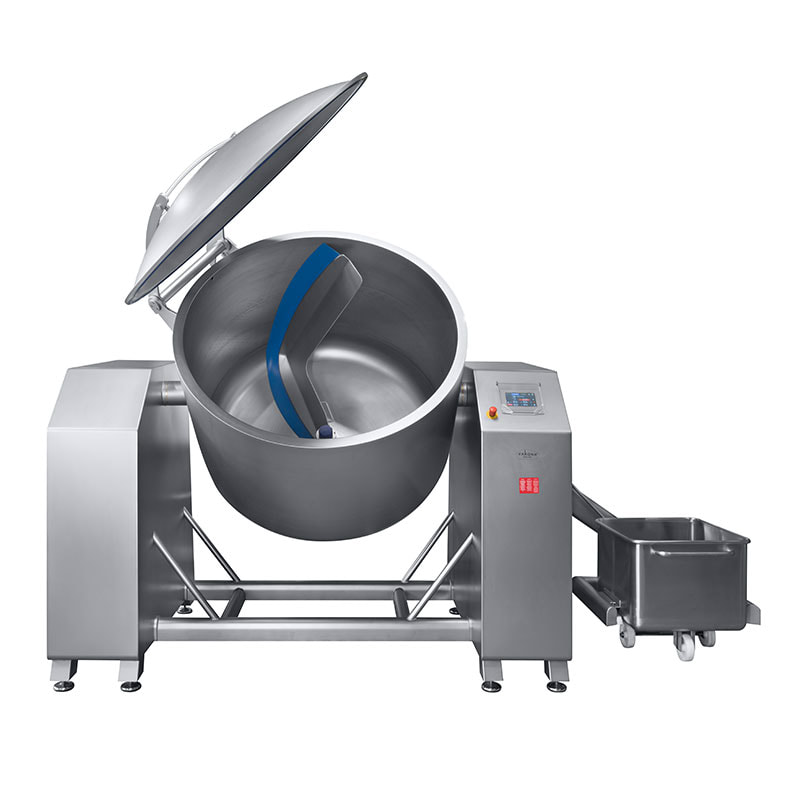

Energy saving cooling tumbler ESK® 1200–1500 STL-B

​
​VAKONA Energy Saving Cooling Tumblers are designed for the operation in the food industry, especially for the field of meat, poultry and fish processing. They are suited for the massing, mixing, massaging, marinating and tumbling of all kind of meat-, poultry and fish products.
The machines captivate with a high user friendliness which is achieved by a plain handling and easy cleaning. A high individualization of the machines is reached by a wide range of equipment options, in order to achieve the highest possible degree of customer-specific product optimization.

Standard equipment:

• Bowl, machine cabinet and frame made from stainless steel
  machine stationary
• Touch screen control unit for automatic and manual operation
• Memory for up to 99 recipes with free adjustable parameters: total-, working- and pause time, rotation speed, temperature, vacuum level, aeration intervals, bowl angle position and automatic bowl sway mode.
• Rotation speed of the tumbling arm variable adjustable from 3-18 rpm
• Direct cooling system with powerful cooling aggregate and heat exchanger in double jacket bowl, made from stainless steel
• Vacuum system including high performance vacuum pump, automatic and programmable aeration cycles, aseptic filter for sterilization of aeration air, hygienic automatic water separator
• Electrical, infinitely variable tilting of the bowl for emptying of the machine
• Electrical lid operation
